Welded mesh panel · Supply & installation
Roll Top (BRC) Fence Malaysia
A secure boundary that does not look hostile. Rolled top and bottom edges on a strong welded mesh, the standard fence for schools, housing developments, parks and commercial frontages.
Overview
About roll top fencing
Roll top fencing, widely known in Malaysia as BRC fence, is a welded mesh panel with the top and bottom edges rolled into a loop. The rolled edge makes the panel stiffer and removes the sharp wire ends, which is why it is used wherever people walk past or children play.
We supply roll top panels in galvanised or powder-coated finish, with matching posts, clips and gates. For a different look, see our V-Fence and Flat Fence welded mesh panels.
Typical uses
- Schools
- Playgrounds
- Housing developments
- Parks
- Sports centres
- Shop lots
- Commercial buildings
- Factory frontages
Specification
Roll top fence sizes & specifications
Standard stock specification. Custom sizes are quoted on request.
Request a rateDownload catalogue
| Mesh spacing | 50 × 150 mm |
|---|---|
| Panel heights | 900 · 1200 · 1500 · 1800 · 2100 · 2400 mm |
| Panel width | 2400 mm |
| Posts | Round galvanised post with cap |
| Fixings | Bolts, nuts & U-clips |
| Finish | Galvanised · Powder coated |
| Related panels | V-Fence · Flat Fence |
How it goes together
Roll top fence components
Fence panel
Welded mesh with the top and bottom edges rolled into a smooth loop, so there are no exposed wire ends.
Fence post
Round galvanised post set in a concrete footing, spaced to suit the 2400 mm panel width.

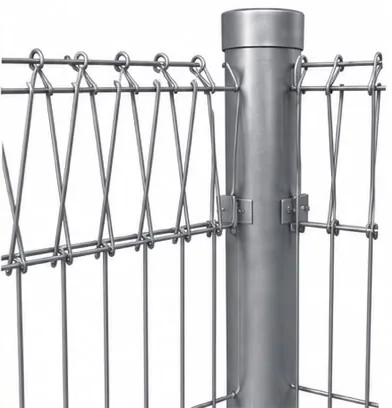

Bolts, nuts & U-clips
Panels clip to the post with U-clips and bolts. No welding on site, and easy to replace a panel later.
Finish
Galvanised for a silver look, or powder coated. Black and green are the most common colours.
Photos
Roll Top (BRC) Fence Malaysia gallery
Common questions
Frequently asked
What is the difference between BRC fence and anti-climb fence?
BRC roll top uses a 50 × 150 mm mesh. It is strong and tidy but can be climbed. Anti-climb fence uses a 12.5 × 75 mm mesh designed to stop climbing and cutting. BRC suits schools and housing; anti-climb suits high-security sites.
What colours are available?
Galvanised silver is standard. Powder coating is available, with black and green being the most popular for housing, schools and sports facilities.
Can roll top fence be installed on an existing wall or kerb?
Yes. Posts can be base-plated and bolted onto an existing concrete plinth or low wall instead of being set in new footings. We check the existing structure first.
Do you supply matching gates?
Yes. Single, double and sliding gates can be supplied in the same finish as the fence.
Other fence types
More from our range
Anti-Climb Fence
12.5 × 75 mm mesh that leaves no finger or toe hold. Our highest-security panel for factories, utilities and restricted sites.
Sizes & specifications
V-Fence
5 mm welded mesh with horizontal V-bends for extra stiffness. Rigid, open and tidy for schools, playgrounds and gated compounds.
Sizes & specifications
Flat Fence
Flat 5 mm welded mesh with a clean, straight face on square or round posts. For industrial runs, rail corridors and walkways.
Sizes & specifications
PVC & GI Chain Link
Green PVC-coated or galvanised chain link in 8G to 10G wire. Built for long land boundaries, farms and site perimeters.
Sizes & specifications
Razor & Barbed Wire
Double-spiral razor coil from 450 to 1000 mm, galvanised or stainless. Fits on new fences and on top of existing walls.
Sizes & specificationsGet a rate for your fence line
Send the site location, the boundary length and the height you need — or just a drawing or a few photos — and we will come back with a quotation.
